13. The central limit theorem

Recommended reference: Wasserman [Was04], Sections 5.3–5.4.

The central limit theorem is a very important result in probability theory. It tell us that when we have \(n\) independent and identically distributed random variables, the distribution of their average (up to suitable shifting and rescaling) approximates a normal distribution as \(n\to\infty\).

13.1. Sample mean

Consider a sequence of independent random variables \(X_1, X_2, \ldots\) distributed according to the same distribution function (which can be discrete or continuous). We say \(X_1, X_2, \ldots\) are independent and identically distributed (or i.i.d.).

Note

We saw the notion of independence of two random variables in Definition 11.6. For a precise definition of independence of an arbitrary number of random variables, see Section 2.9 in Wasserman [Was04].

Definition 13.1

The \(n\)-th sample mean of \(X_1,X_2,\ldots\) is

\[ \overline{X}_n = \frac{1}{n}\sum_{i=1}^n X_i. \]

Note that \(\overline{X}_n\) is itself again a random variable.

13.2. The law of large numbers

As above, consider i.i.d. samples \(X_1, X_2, \ldots\), say with distribution function \(f\). We assume that \(f\) has finite mean \(\mu\). The law of large numbers says that the \(n\)-th sample average is likely to be close to \(\mu\) for sufficiently large \(n\).

Theorem 13.1 (Law of large numbers)

For every \(\epsilon>0\), the probability

\[ P(|\overline{X}_n-\mu|>\epsilon) \]

tends to \(0\) as \(n\to\infty\).

Note

The above formulation is known as the weak law of large numbers; there are also stronger versions, but the differences are not important here.

Fig. 13.1 illustrates the law of large numbers for the average of the first \(n\) out of 1000 dice rolls.

Show code cell source

Hide code cell source

from myst_nb import glue
import numpy as np
import plotly.graph_objects as go

N = 1000  # Total number of dice rolls
num_samples = 5  # Number of samples to animate sequentially
rng = np.random.default_rng()
n = np.arange(1, N + 1, 1)

# Generate dice rolls for each sample and calculate cumulative averages
samples = [rng.integers(1, 7, N) for _ in range(num_samples)]
cumulative_averages = [np.cumsum(sample) / n for sample in samples]

fig = go.Figure()

# Add the expected value line
fig.add_trace(go.Scatter(
    x=[1, N],
    y=[3.5, 3.5],
    mode="lines",
    line=dict(color="red", dash="dash"),
    name="Expected Value"
))

# Initial traces for each sample
for i, Xbar in enumerate(cumulative_averages):
    fig.add_trace(go.Scatter(
        x=n[:1],
        y=Xbar[:1],
        mode="lines+markers",
        line=dict(color="blue"),
        name=f"Sample {i + 1}",
        visible=(i == 0)  # Only the first sample is visible initially
    ))

# Creating frames: animate each sample sequentially
frames = []
for i, Xbar in enumerate(cumulative_averages):
    # Frames for each sample, updating every 15 steps
    sample_frames = [
        go.Frame(
            data=[
                go.Scatter(x=[1, N], y=[3.5, 3.5], mode="lines", line=dict(color="red", dash="dash")),  # Expected line
                *[
                    # Show the cumulative average line up to the current frame for the active sample
                    go.Scatter(x=n[:k], y=Xbar[:k], mode="lines+markers",
                               line=dict(color="blue"),
                               visible=(j == i))  # Only the current sample trace is visible
                    for j in range(num_samples)
                ]
            ],
            name=f"Sample {i + 1} Frame {k}"
        )
        for k in range(1, N, 15)
    ]
    frames.extend(sample_frames)

# Add frames to the figure
fig.frames = frames

# Play/pause button to control animation
fig.update_layout(
    xaxis=dict(title="n", range=[1, N]),
    yaxis=dict(title="Cumulative average", range=[2, 5]),
    updatemenus=[dict(
        type="buttons",
        showactive=False,
        buttons=[dict(label="Play",
                      method="animate",
                      args=[None, {"frame": {"duration": 50, "redraw": True},
                                   "fromcurrent": True}]),
                 dict(label="Pause",
                      method="animate",
                      args=[[None], {"frame": {"duration": 0, "redraw": True},
                                     "mode": "immediate",
                                     "transition": {"duration": 0}}])
                ]
    )]
)

glue("lln", fig)

Fig. 13.1 Illustration of the law of large numbers: average of \(n\) dice rolls as \(n\to\infty\).

Warning

If the mean of the distribution function \(f\) does not exist, then the law of large numbers is meaningless. This is illustrated for the Cauchy distribution (see Definition 12.1) in Fig. 13.2.

Show code cell source

Hide code cell source

import numpy as np
from matplotlib import pyplot
from myst_nb import glue

rng = np.random.default_rng(seed=37)
N = 1000
n = np.arange(1, N + 1, 1)
X = rng.standard_cauchy(N)
Xbar = np.cumsum(X) / n

fig, ax = pyplot.subplots()
ax.plot((0, 1000), (0, 0))
ax.plot(n, Xbar)

ax.set_xlabel('$n$')
ax.set_ylabel('$\\overline{X}_n$')

glue("lln-cauchy", fig)

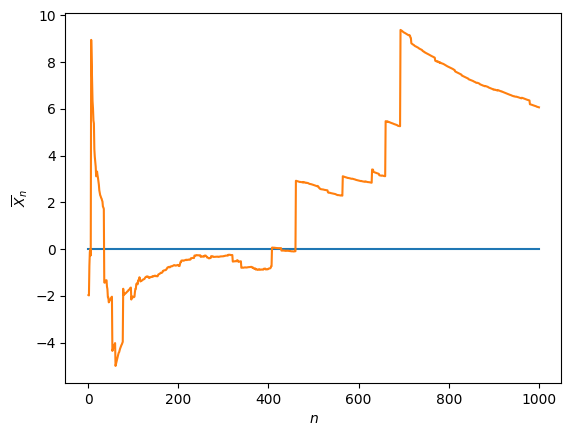

Fig. 13.2 Failure of the law of large numbers: average of \(n\) samples from the Cauchy distribution as \(n\to\infty\).

13.3. The central limit theorem

Again, we consider a sequence of i.i.d. samples \(X_1, X_2, \ldots\) with distribution function \(f\). We assume \(f\) has finite mean \(\mu\) and variance \(\sigma^2\).

By the law of large numbers, the shifted sample mean

\[ \overline{X}_n-\mu = \frac{1}{n}(X_1+\cdots+X_n)-\mu \]

has expectation 0.

Theorem 13.2 (Central limit theorem)

The distribution of the sequence of random variables

\[ Y_n = \frac{\sqrt{n}}{\sigma}(\overline{X}_n-\mu) \]

converges to the standard normal distribution as \(n\to\infty\).

Roughly speaking, we can write this as

\[ \overline{X}_n \approx \mu + \frac{\sigma}{\sqrt{n}}Z \]

where \(Z\) is a random variable following a standard normal distribution, or as

\[ \overline{X}_n \longrightarrow \mathcal{N}\biggl(\mu,\frac{\sigma}{\sqrt{n}}\biggr) \quad\text{as }n\to\infty, \]

where \(\mathcal{N}(\mu,\sigma)\) denotes the normal distribution with mean \(\mu\) and standard deviation \(\sigma\).

Show code cell source

Hide code cell source

# Adapted from
# https://furnstahl.github.io/Physics-8820/notebooks/Basics/visualization_of_CLT.html
# by Dick Furnstahl (license: CC BY-NC 4.0)

from math import comb, factorial
from matplotlib import pyplot
from myst_nb import glue
import numpy as np
import plotly.graph_objects as go

mu = 0.5
sigma = 1 / np.sqrt(12)

def bates_pdf(x, n):
    # https://en.wikipedia.org/wiki/Bates_distribution
    return (n / (2 * factorial(n - 1)) *
            sum((-1)**k * comb(n, k) * (n*x - k)**(n-1) * np.sign(n*x - k) for k in range(n + 1)))

def normal_pdf(x, mu, sigma):
    return (1/(np.sqrt(2*np.pi) * sigma) *
            np.exp(-((x - mu)/sigma)**2 / 2))

# Create figure
fig = go.Figure()

# Add traces, one for each slider step
for step in np.arange(1, 21, 1):
    sigma_tilde = sigma / np.sqrt(step)
    x_min = mu - 4*sigma_tilde
    x_max = mu + 4*sigma_tilde
    x_pts = np.linspace(x_min, x_max, 200)

    # Add normal distribution at current slider step
    fig.add_trace(
        go.Scatter(
            visible=False, # Set to false by default to prevent all of them appearing on top of each other before the slider is moved
            line=dict(color="green", width=5),
            x=x_pts,
            y=normal_pdf(x_pts, mu, sigma_tilde),
            showlegend=False
        )
    )

    # Add bates distribution at current slider step
    fig.add_trace(
        go.Scatter(
            visible=False, # Set to false by default to prevent all of them appearing on top of each other before the slider is moved
            line=dict(color="red", width=5),
            x=x_pts,
            y=bates_pdf(x_pts, step),
            showlegend=False
        )
    )

# We disabled the visibility of every trace above so they don't show up all at the same time.
# Now we pick which ones we want to make visible by default, i.e. the default position of the slider.
# We added two traces per slider step, so fig.data[0] and fig.data[1] both belong to the first step,
# i.e. normal and Bates distribution at the first step will be visible by default
fig.data[0].visible = True
fig.data[1].visible = True

# For n slider steps we have 2n elements in fig.data because there is a normal and Bates
# distribution for each one. So we move in increments of 2.
steps = []
for step in range(0, len(fig.data), 2):
    step_dict = dict(
        method="update",
        args=[{"visible": [False] * len(fig.data)}],
        label=((step // 2) + 1)
    )
    step_dict["args"][0]["visible"][step:step+2] = [True, True]  # Show normal and Bates for this step
    steps.append(step_dict)

sliders = [dict(
    active=0,
    currentvalue={"prefix": "n = "},
    pad={"t": 50},
    steps=steps
)]

fig.update_layout(
    sliders=sliders,
    xaxis_title="x",
    yaxis_title="f(x)",
)

glue("clt", fig)

Fig. 13.3 Illustration of the central limit theorem for an average of \(n\) samples from the uniform distribution on \([0, 1]\).

Show code cell source

Hide code cell source

from math import comb, factorial
import numpy as np

from matplotlib import pyplot
from myst_nb import glue

p = 0.7

# Mean and standard deviation of our distribution
mu = p
sigma = np.sqrt(p*(1 - p))

def binomial_pmf(k, n):
    return comb(n, k) * p**k * (1 - p)**(n - k)

def normal_pdf(x, mu, sigma):
    return (1/(np.sqrt(2*np.pi) * sigma) *
            np.exp(-((x - mu)/sigma)**2 / 2))

def plot_ax(ax, n):
    """
    Plot a histogram on axis ax that shows the distribution of the
    n-th sample mean.  Add the limiting normal distribution.
    """
    sigma_tilde = sigma / np.sqrt(n)
    x_min = mu - 4*sigma_tilde
    x_max = mu + 4*sigma_tilde

    ax.set_title('$n={}$'.format(n))
    ax.set_xlabel('$x$')
    ax.set_ylabel('$f(x)$')
    ax.set_xlim(x_min, x_max)

    # plot a normal pdf with the same mu and sigma
    # divided by the sqrt of the sample size.
    x_pts = np.linspace(x_min, x_max, 200)
    y_pts = normal_pdf(x_pts, mu, sigma_tilde)
    ax.plot(x_pts, y_pts, color='gray')
    for k in range(n + 1):
        ax.add_line(pyplot.Line2D((k/n, k/n), (0, n * binomial_pmf(k, n)),
                    linewidth=2))

sample_sizes = [1, 2, 4, 8, 16, 32]

# Plot a series of graphs to show the approach to a Gaussian.
fig, axes = pyplot.subplots(3, 2, figsize=(8, 8))

for ax, n in zip(axes.flatten(), sample_sizes):
    plot_ax(ax, n)

fig.tight_layout(w_pad=1.8)

glue("clt-bern", fig)

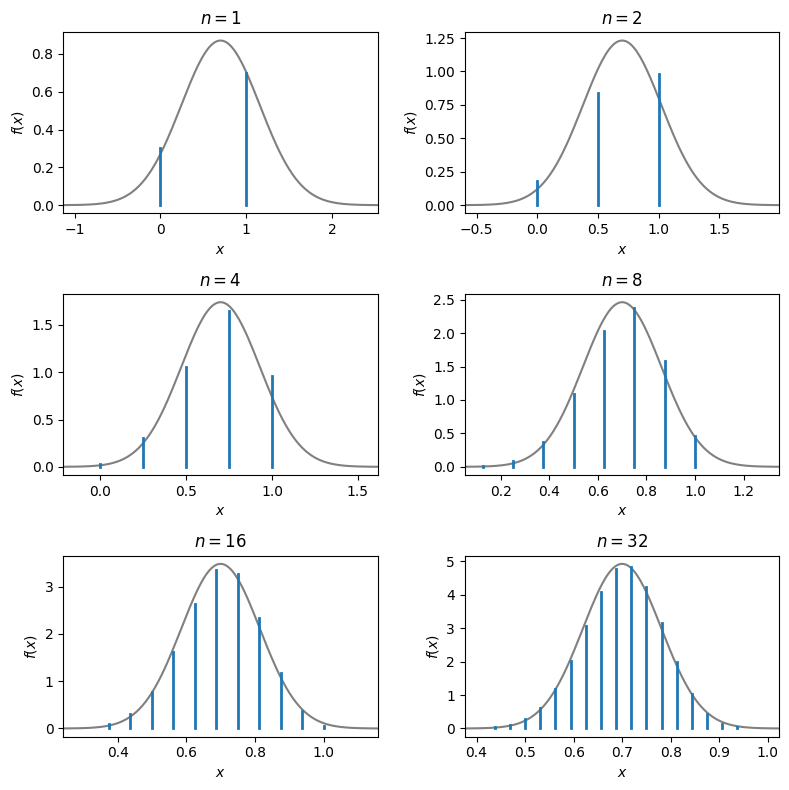

Fig. 13.4 Illustration of the central limit theorem for an average of \(n\) Bernoulli random samples (probability mass function scaled by a factor \(n\) for comparison with the probability density function of the normal distribution).

The law of large numbers and a fortiori the central limit theorem are ‘well-known’ results, but their applicability relies on properties of random variables that are not necessarily satisfied in all cases. We already saw an example where the law of large numbers fails in Fig. 13.2. Likewise, one needs to be careful when applying the central limit theorem. Mathematical proofs help to clarify under what conditions these results hold and why. Perhaps surprisingly, a way to prove the law of large numbers and the central limit theorem is through Fourier analysis, via the characteristic function introduced in Section 11.9. We will not go into the details here.

Some videos on the central limit theorem

For further background and nice animations, we recommend the following videos by Grant Sanderson (3Blue1Brown) about convolutions, the normal distribution and the central limit theorem:

1. What are convolutions?

2. What is the central limit theorem?

3. Why \(\pi\) appears in the Gaussian distribution

4. Interpreting sums of random variables

5. Why the Gaussian is the limiting distribution

---

13.4. Exercises

Exercise 13.1

Suppose a certain species of tree has an average height of 20 metres with a standard deviation of 3 metres. A dendrologist measures 100 of these trees and determines their average height. What will the mean and standard deviation of this average height be?

Exercise 13.2

Suppose \(X_1,X_2,\dots\) are independent random variables distributed according to the standard normal distribution \(\mathcal{N}(0,1)\). What does the central limit theorem tell you about the distribution of \(X_1+\cdots+X_n\) as \(n\to\infty\)?

Exercise 13.3

1. Go through the proof of the central limit theorem given in Wasserman [Was04], Subsection 5.7.2. This uses the notion of moment generating functions; see Moments and the characteristic function.

2. Try to adapt the proof to use characteristic functions instead of moment generating functions.
